HMP_TE Range Of Taper Pipe Couplings

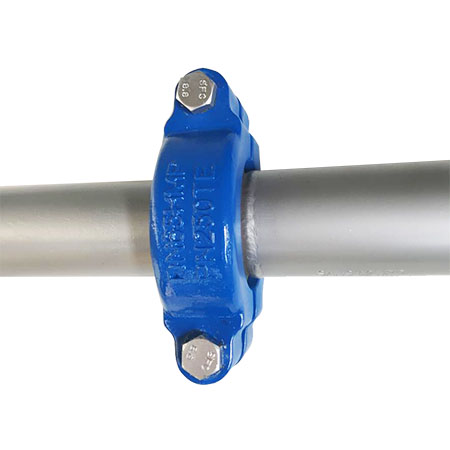

HMP TE Range Of Taper Pipe CouplingsOVERVIEW

The HMP™_TE Taper pipe coupling is a high pressure pipe coupling, designed as an easy method of joining pipes. Also commonly termed quick couplings for steel pipes, the HMP™_TE couplings are used in high pressure piping systems. It speeds up installation time drastically when compared to flanges. The HMP™_TE was re-engineered by the Hydromine Projects International to be interchangeable with the original Anglo American / TE taper pipe coupling.

Using the HMP™_TE coupling will result in lower total capital expenditure due to the fact that it has a lower procurement cost, more pipes can be loaded per truck or rail carriage load, it takes less space when stored and most importantly, there will be a saving on labour as installation is quicker and easier than flanges. It can be installed in vertical mine shafts, inclines or horizontally. The HMP™_TE coupling can be used in pipe lines carrying liquids or abrasive material and is perfect for mining backfill pipes. The HMP™ U-Coupling is newer technology and more cost effective than the HMP™_TE coupling.

The HMP™_TE pipe coupling can be installed in a system where pipes hang on chains, parrot swings or are U-Bolted  down onto pipe supports. Pipes should be anchored before and after every change of direction. The full range of HMP™ valves, expansion joints and energy dissipator can be manufactured with HMP™_TE coupling end connections.

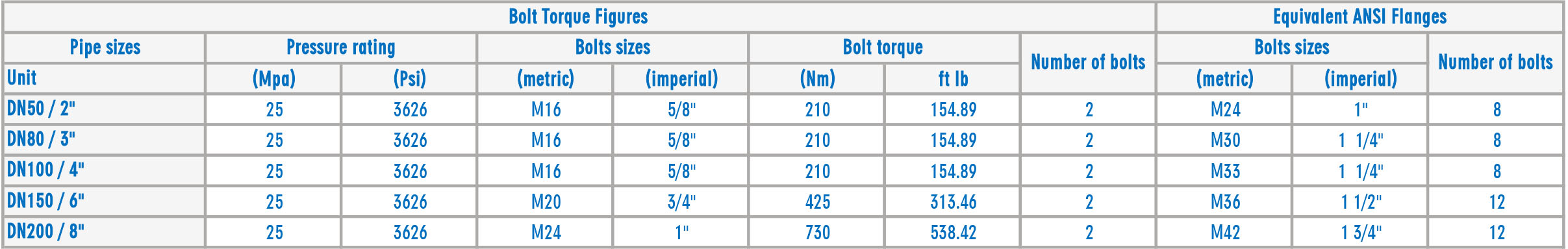

BOLT TORQUE SETTINGS

HMP TE Range Of Taper Pipe Couplings Torque

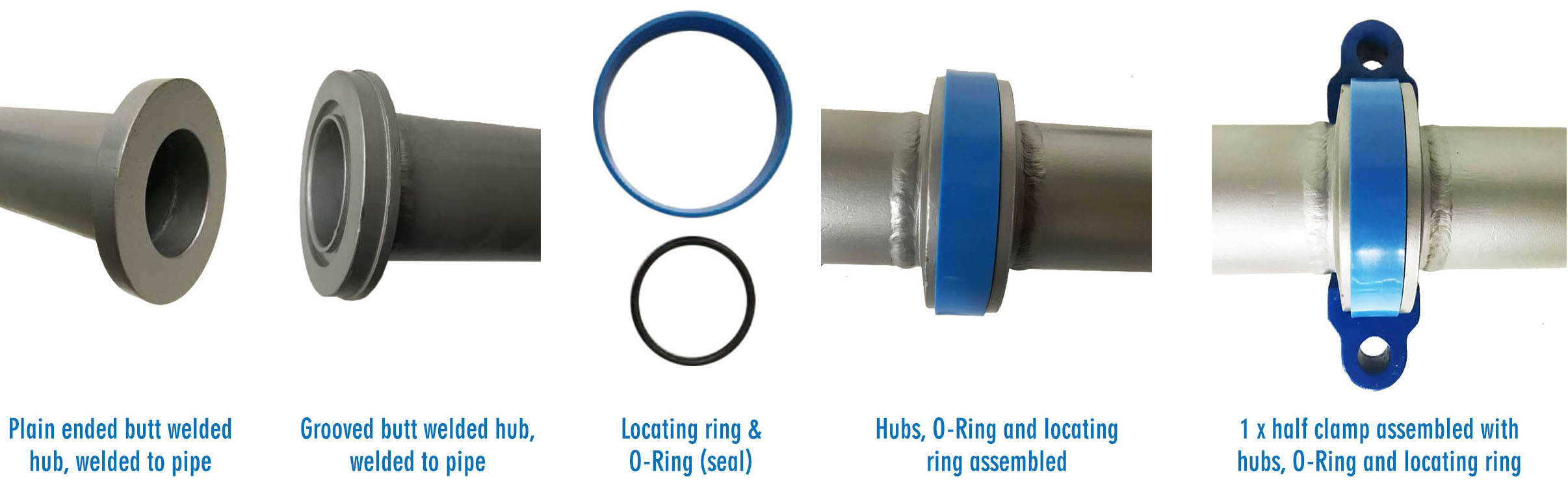

PARTS

HMP TE Range Of Taper Pipe Couplings Parts

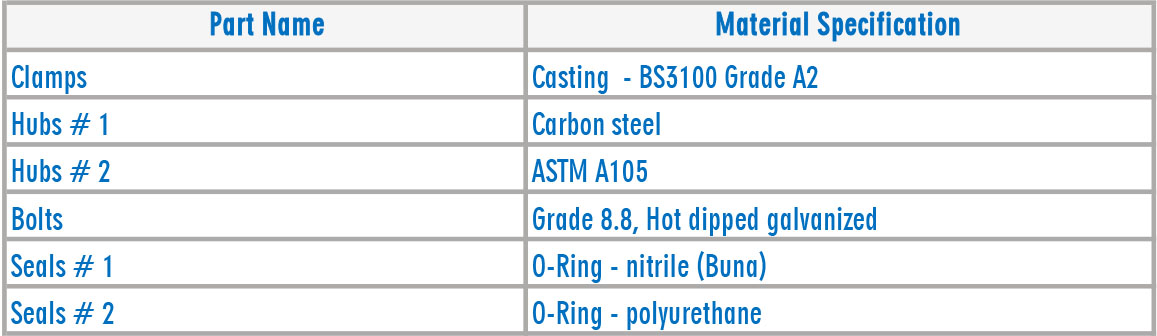

MATERIALS OF CONSTRUCTION

HMP TE Range Of Taper Pipe Couplings Materials

DESIGN AND MANUFACTURING STANDARDS

The HMP™_TE Hydraulic coupling are designed in accordance with various international standards as set out below:
ASME Boilers and pressure vessels design code
ANSI B16.3
ANSI B16.34
ANSI N278.1
ANSI B16.37

Available sizes: DN50 / 2" to DN200 / 8"
Pressure rating: up to 25MPa / 3 626 psi

DOWNLOADS

Product Brochure
