LFC™_1B Electrically Actuated Isolation Valve

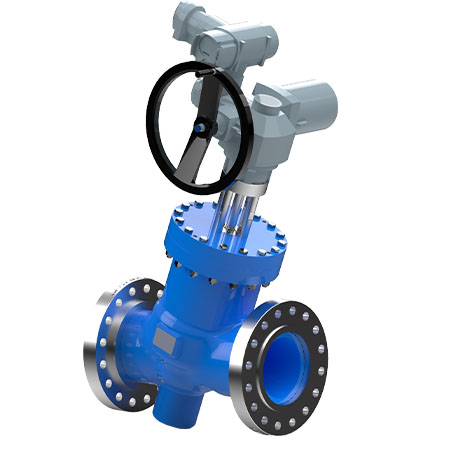

LFC 1B Electrically Actuated Isolation ValveOVERVIEW

The LFC™_1B Electrically actuated Isolating valves were designed to be energy efficient with a low flow co-efficient (Cv), simple and easy to operate.

Due to the hydraulically balanced design and low torque requirements the valve requires a relatively small electrical actuator with no external gearbox. This feature saves capital and long-term maintenance costs. Any make of electrical actuator can be fitted on the LFC™_1B electrically actuated isolation valve. The LFC™_1B electrically actuated isolation valves are generally used in pump discharge control, PLC regulated control or any other automated applications.

LOW OPERATING TORQUE

The LFC™_1B Electrically actuated isolating valve is hydrostatically balanced to enable easy opening and closing at any pressure and differential conditions. It does not require the use of a gearbox or a by-pass valve to balance pressure between the inlet and outlet. The differential pressures do not affect the operating torque which results in a relatively flat torque curve allowing for the fitment of smaller actuators.

CV VALUE & ENERGY EFFECIENCY (REDUCED OPERATING COSTS)

One of the primary costs after the initial capital outlay is running costs, especially in a pump station. A valve's Cv refers to the number of US gallons of water per minute at 60F that will flow through a valve with a pressure drop of one psi and is indirectly proportional to the amount of energy consumed to drive water through the valve. Cv should therefore be factored into the running cost of the system as it directly affects pumping cost and energy expense incurred to achieve the pumping volume requirements. Valves with better Cv values offer quantifiable energy savings over time.

OPERATING CONDITIONS

These valves are designed to operate in systems with relatively clean media like water or other liquids with a low percentage of suspended solids and chlorides. The valve's operating pH range is 2 - 14 pH.

SIMPLICITY

The LFC™_1B valve is designed to minimize wearing parts and in effect only has one moving part called the plug. The plug is a piston that is engineered to be balanced. The balanced plug uses the inline fluid pressure to remove the influence of differential pressure on operating torque. As such, the valve operating torque is the torque required to overcome the sum of the friction forces generated between the valve seals and the sleeve plus the weight of the plug (depending on the installation configuration). This torque requirement is not affected by inline pressure variants and as such makes the balanced valves extremely good for actuation applications as well as for   isolation valves where manual operation is required. Removal of gearboxes reduces maintenance requirements and improves troubleshooting times.

LOW MAINTENANCE REQUIREMENT

All the moving parts of the LFC™_1B Electrically actuated manual isolation valves are manufactured from stainless steel which increases reliability and durability. The LFC™_1B Electrically actuated manual isolation valve requires minimal maintenance, the majority of which, can be conducted with the valve remaining in situ.

MATERIALS OF CONSTRUCTION & DIMENSIONS

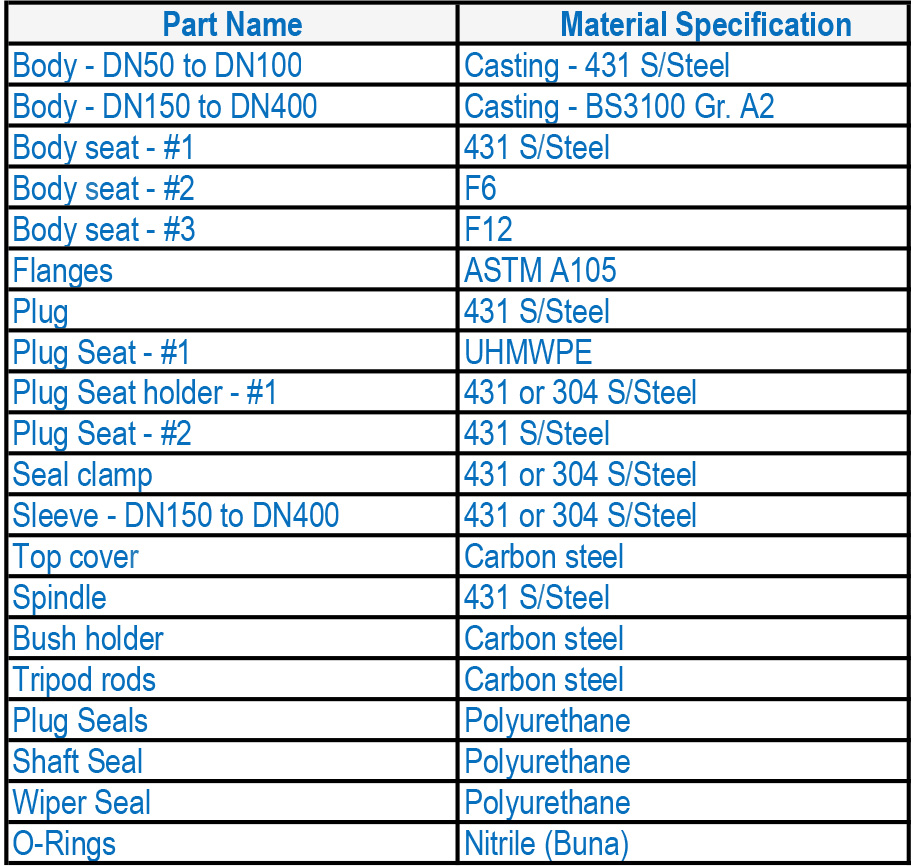

LFC 1B Electrically Actuated Isolation Valve MC

FLOW RATES

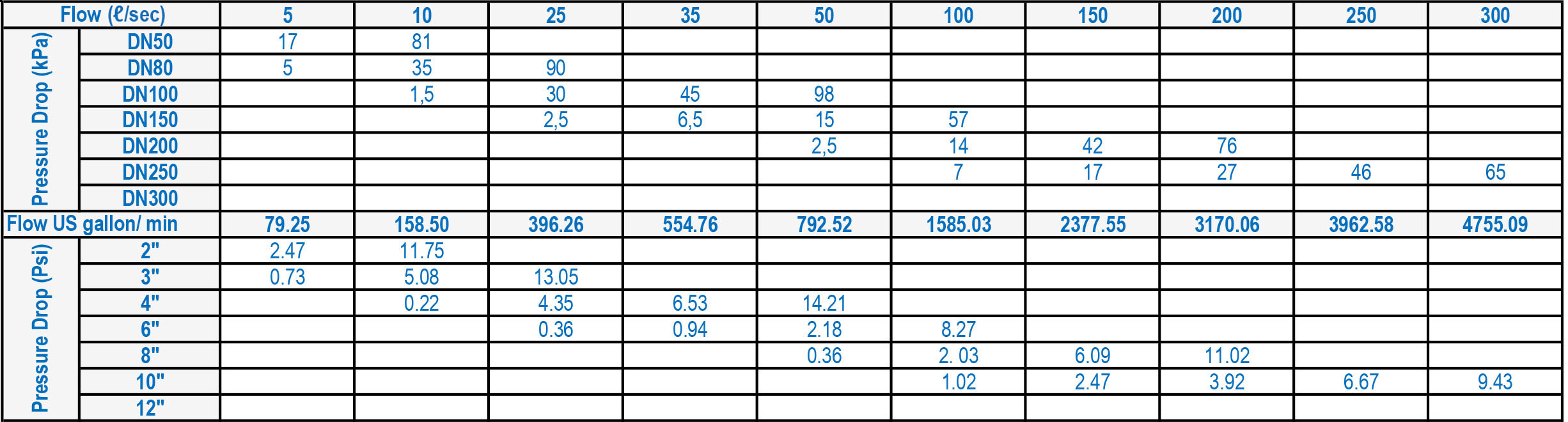

LFC 1B Electrically Actuated Isolation Valve FR

DESIGN AND MANUFACTURING STANDARDS

The The LFC™_1B electrically actuated valve has been designed in accordance with various international standards as set out below:
ASME Boilers and pressure vessels design code
ANSI B16.10 ANSI B16.3
ANSI B16.34 ANSI B16.37
ANSI B16.5 ANSI N278.1

Available sizes: DN50 / 2" to DN400 / 16"
Pressure rating: up to 25MPa / 3 626 psi
Face to face dimensions: ANSI B16.10 or other, minimum #600

Available end connections: ANSI B16.5, BS4504, BS10, AS/NZS 4331.1 (ISO 7005-1) DIN, Victaulic, HMP™ Coupling, HMP™ -TE tapered couplings and other as per clients requirement.
